3D B-Spline Representation

For historical reasons the documentation of the B_spline_curve is not clear and unfortunately leaves room for interpretation. This Implementation Guideline clarifies the relevant facts and describes the valid interpretations in the field.

Background

The following section contains a short wrap-up about NURBS (Non-uniform rational B-spline). The description in this section aims primarily at an informal understanding and not at a precise and 100% correct mathematical definition. It contains just enough information to understand the definitions in this guidline and is a summary from multiple sources. For more details check for the following links ¹²³ from which this summary has been derived.

NURBS are a commonly used as a representation of surfaces and curves in computer-aided design and are part of numerous industry wide standards. For the KBL & VEC only the representation of curves (the 3D centerline of Segments) as NURBS is relevant. NURBS are representing a curve as a mathematical function. The appearance of the curve can be influenced by a set of parameters:

• Degree $d$: This is usally one of $\left [1,2,3,5 \right ]$. Sometimes, there are references to the order of a NURBS, where order is $d + 1$. The degree defines the number of control points that influence any given point of the curve.
• Control Points: The control points define the shape curve. Each NURBS can have $n$ control points, where $n > d$.
• Weight: Each control point can define an individual weight.
• Knot vector: The knot vector defines where and how the control points affect the NURBS curve. The number of knots is equal to $n + d + 1$. The values in the vector have a non-decreasing order. However, consecutive knots can have the same value, e.g. $(0,0,1,2,3,4,4)$ is a valid vector. A number of coinciding knots is sometimes referred to as a knot with a certain multiplicity. A knot where the multiplicity is equal to the order ($d+1$) is a full multiplicity knot.

Special Cases of NURBS

The NURBS (Non-Uniform Rational B-Spline) are the most common form. There are groups of NURBS that have special properties:

1. If all control points have the same weight ($w=1.0$) the B-Spline is called non-rational
2. If knot vector starts and ends with a full multiplicity knot the B-spline is called clamped. A clamped B-spline starts in the first and ends in the last control point.
3. Uniform: There are some slightly different interpretations about the defintion of uniformity. In general uniform refers to the distribution of the knot values in the knot vector. Some sources (e.g. ²) define, that if the knot vector is clamped, all other knots have a multiplicity of one, and all knots (values) have the same distance, the B-spline is called uniform. For example a NURBS with $d=4$ and with a knot vector $(0,0,0,0,0,1,2,3,4,5,5,5,5,5)$ would be uniform. Other sources (e.g. ⁴) differentiate between clamped uniform and unclamped uniform:
   • Clamped uniform would correspond to the defintion above,
   • Unclamped uniform would require all knots to have a multiplicity of one, and all knots (values) to have the same distance (e.g. $(0,1,2,3,4,5,6,7,8,9,10,11,12)$).

Current Situation in the KBL

The intention of the KBL was, to keep the B-spline data model as simple as possible. Therefore the data model just contains the control points and the degree, assuming that all other parameters have an unambigious default when the set of valid NURBS are restricted to Uniform non-rational B-Splines (UNRBS). This is the reason why the KBL model does not define a weight nor a knot-vector.

Unfortunately, the definition of the KBL was not as precise as it could have been. No concrete definition was made as to whether these are clamped or unclamped uniform B-Splines. At the moment implementations for both variants exist.

A subsequent restriction to one of the two variants was discussed in the relevant committees and considered impracticable. The reasons for this were, on the one hand, the large volume of existing data and, on the other hand, the non-trivial conversion process between the two variants, which makes it virtually impossible to implement it in practice.

Definition

The B_spline_curve in the KBL represents a uniform non-rational B-spline (either clamped or unclamped). When rendering 3D KBL data, the renderer has to use external knowledge to determine which variant is used.

Note: Due to this fact, the B-Spline modeling in VEC version 1.2.0 and higher has been extended in a way so that all information of a NURBS can be represented.

Supplier Parts and Supplier Part Selection

The Part in the KBL represents an identifier for the PDM information of a component in the context of a specific company. Therefore the Part has the mandatory key attributes Part_number and Company_name. The most common case in the KBL is, that the Part within a harness, represents an OEM component specification.

There are cases where this specification can be satisfied by components from different suppliers. The harness manufacturer has a freedom of choice between these components (e.g. for reasons of local availability). However, in the end the choosen alternative shall be documented. This implementation guideline defines how this scenario shall be represented in the KBL.

Basically this scenario is covered by the Alias_identification as it represents "…an additional identifier that is used to identify the object of interest in a different context, either in another Organization, or in some other context.". Therefore, the following applies:

• Alias_identification in the context of a Part shall define the possible supplier part numbers.
• Alias_identification in the context of a Connection_or_occurrence shall define the selected supplier part number.

The following attribute mapping shall be used:

Sealed Ring Terminals

Ring terminals are often installed with a wire protection (e.g. a shrinking tube) that is covering the crimp area (see the figure on the right). This implementation guideline defines how this scenario shall be represented in the KBL.

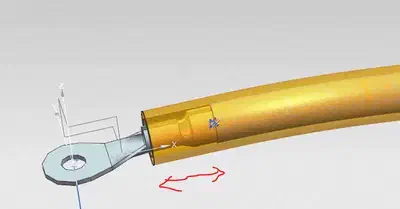

The necessity for a separate definition of this situation arises from the fact, that in the KBL wire protections are always placed on segments of the topology. For electrical end points (e.g. connectors or ring terminals) the last segment ends at a defined location, the segment connection point (a.k.a. bundle connection point). For ring terminals, the start of the crimp area is defined as segment connection point (the blue marker in the figure on the right). That means, that the wire protection (the yellow tube) is overlapping into an area that is outside of the topology (the red arrow).

A regular Protection_area assigns a Wire_protection_occurrence onto a Segment. It starts and ends on locations defined by a value that relates to the curve parameter of the segment (0.0 ≤ x ≤ 1.0). A representation of the scenario by these means (e.g. a curve parameter x < 0) is not possible without simultaneously creating a representation that is highly open to interpretation, especially for other cases (e.g. “What does a curve parameter less than zero mean for segments that end at an intersection?”).

Therefore the defined representation of this scenario is:

1. The Protection_area is defined as if it would end at the segment connection point.
2. The Wire_protection_occurrence uses the ring terminal as reference_element (possible with KBL 2.5 SR-1 and later).
3. The protection_length is the calculated length from the Protection_area plus the length of the overlapping area.

Multiple Cavity Parts

The Contact_point in the KBL allows the referencing of an unspecified number of Part_usage_selects in the role Associated_parts. This implementation guideline clarifies the valid use cases of multiplicities > 1.

For a standard contacting (the “90% case”), the Associated_parts association references a single Terminal_occurrence and an (optional) Cavity_seal_occurrence for sealed contacting situations.

Chapter 2.2 of the KBL Recommendation Document (V2.5) already defines:

The Contact_point specifies a single contacting variant. This means that the contacting is manufactured, as specified in the KBL. Either all participants (Cavities, Terminals, Seals, Wires) set into a relationship by the Contact_point exist in a specific harness or none. There is no requirement, to filter the participants of a contacting situation with information derived from Module_configurations in order to create a manufacturing variant.

The Contact_point represents a single potential. As a consequence, all cavities and wires referencing / being referenced by a Contact_point are short-circuited and have the same potential (even if the signals on the wires are named differently.

In other words, using the Associated_parts to represent a 150% contacting situation is not a valid approach in the KBL. However, there are still remaining situations, where more components than one Terminal_occurrence (and one Cavity_seal_occurrence) participate in a specific contacting situation. The representation of those cases in the KBL depends on the role that the components have in the contacting sitation.

• Multiple Terminal_occurrence and/or Cavity_seal_occurrence are valid, provided all the components of the respective class have a conducting (terminal) or sealing function and they always occur together (100%). Illustrations for such cases can be found on the right.
• All other components (e.g. wire fixations, damping elements) have to be represented as an Accessory_occurrence to the primary terminal component.

The representation is illustrated the following figure. Reasons for choosing this representation where:

1. It is aligned with the representation in the VEC, which defines individual classifications for those components (WireEndAccessorySpecification & CavityAccessorySpecification)
2. Representing those “accessories” as regular Associated_parts would mislead existing established sanity checks (e.g. the existence of a Cavity_seal_occurrence would raise the question why only one contact in the connector was sealed.)

Specification of Splices

For historical reasons, the representation of splices in the KBL is quite implicit. A splice is represented as a regular Connector_housing respectively a Connector_occurrence. It can be identified with the Connector_occurrence.Usage and/or Connector_housing.Housing_type (see KBLFRM-1025 ). Due to these generic approach the splice is currently missing some splice specific information on the occurrence level in the KBL model:

• Type: Defines if the splice is a parallel splice or an end splice. An end splice is a splice where all wires are inserted from the same side of the splice, a parallel splice has wires from both sides.
• Seal State: Defines if the splice should be sealed or not.

To overcome this limitation the following Installation_instructions shall be used on the Connector_occurrence
